- Introduction to Medical Ultrasonic Probes
In the rapidly advancing field of modern medicine, diagnostic and therapeutic tools play a crucial role in ensuring accurate diagnoses and effective treatments. Among these indispensable tools, medical ultrasonic probes stand out as one of the most versatile and widely used technologies. These probes are essentially devices that emit high-frequency sound waves, which are beyond the range of human hearing, to capture detailed images of internal body structures or deliver targeted therapies. Their importance in healthcare cannot be overstated, as they provide non-invasive, real-time imaging capabilities that are both cost-effective and safe for patients.
Medical ultrasonic probes have revolutionized the way doctors and healthcare professionals approach diagnostics and treatment planning. Unlike X-rays or CT scans, ultrasound does not involve ionizing radiation, making it a safer alternative for repeated use or for sensitive populations such as pregnant women and children. This makes ultrasonic probes particularly valuable in obstetrics, cardiology, radiology, and numerous other medical specialties. For instance, an obstetrician can use an ultrasound probe to monitor fetal development during pregnancy, while a cardiologist might rely on it to assess heart function and detect abnormalities.
The versatility of ultrasonic probes extends far beyond imaging. They are also employed in therapeutic applications, such as lithotripsy (the breaking down of kidney stones) and focused ultrasound surgery, where high-intensity sound waves are used to destroy tumors or treat conditions without incisions. In addition, ultrasonic probes are integral to minimally invasive procedures, guiding needles during biopsies or delivering localized treatments with precision.
Despite their widespread adoption, many people may not fully understand how these remarkable devices work or why they are so critical in modern medicine. At its core, an ultrasonic probe operates based on the principles of sound wave reflection and reception. When the probe emits sound waves into the body, those waves bounce back when they encounter different tissues or structures. The returning echoes are then captured by the probe and converted into electrical signals, which are processed by a computer to generate detailed images. This process allows doctors to visualize organs, blood flow, and other internal features with remarkable clarity.
Another key advantage of ultrasonic probes is their portability and ease of use. Unlike bulky imaging machines like MRI or CT scanners, ultrasound equipment is often compact and can be transported easily between departments or even to remote locations. This accessibility ensures that patients in rural or underserved areas can still benefit from advanced diagnostic tools. Furthermore, advancements in technology have led to the development of handheld ultrasound devices, further democratizing access to this vital tool.
As we delve deeper into the world of medical ultrasonic probes, it becomes clear that their impact on healthcare is profound. From enabling early detection of diseases to facilitating complex surgeries, these devices continue to evolve and improve patient outcomes worldwide. In the following sections, we will explore the inner workings of ultrasonic probes, their various types, and their diverse applications across different medical fields. By gaining a comprehensive understanding of these remarkable tools, we can appreciate just how essential they are to modern medicine—and what the future holds for this ever-advancing technology.
- What is an Ultrasonic Probe?
An ultrasonic probe, also known as an ultrasound transducer, is a sophisticated device that serves as the interface between the human body and an ultrasound machine. At its most basic level, an ultrasonic probe is designed to generate high-frequency sound waves (typically above 20 kHz) and receive the echoes that bounce back from internal structures within the body. These sound waves are far beyond the range of human hearing, which is why they are referred to as “ultrasonic.” The probe acts both as a transmitter and a receiver, making it a bidirectional tool that plays a dual role in medical imaging.
To understand how an ultrasonic probe works, it’s essential to delve into its core components. Most probes consist of piezoelectric crystals, which are materials capable of converting electrical energy into mechanical vibrations (and vice versa). When an electric current is applied to these crystals, they vibrate at specific frequencies, producing sound waves. Conversely, when sound waves return to the probe after reflecting off tissues, the crystals convert the mechanical vibrations back into electrical signals. These signals are then processed by the ultrasound machine to create detailed images of organs, muscles, blood vessels, and other internal structures.

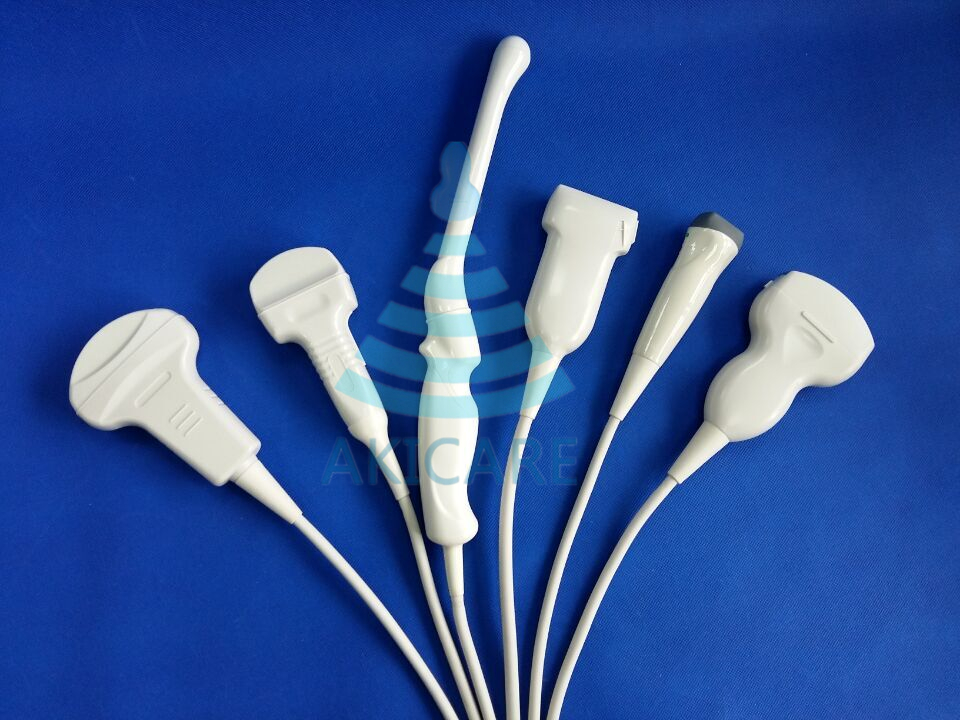

Ultrasonic probes come in various shapes and sizes depending on their intended use. For example, linear probes produce straight, rectangular images and are commonly used for superficial structures like tendons or blood vessels. Convex probes, on the other hand, have a curved surface that allows for wider coverage and is ideal for examining larger areas such as the abdomen. Phased array probes use multiple small elements to steer the sound beam electronically, enabling them to focus on deeper structures like the heart. Additionally, specialized probes exist for unique applications, such as endocavity probes (used for gynecological exams) and intravascular probes (used during cardiac catheterization).
One of the defining characteristics of ultrasonic probes is their ability to operate at different frequency ranges. Higher-frequency probes provide greater resolution but penetrate less deeply into tissues, while lower-frequency probes offer deeper penetration at the cost of reduced detail. This flexibility allows healthcare providers to select the appropriate probe type based on the specific needs of each examination.
In summary, an ultrasonic probe is more than just a tool—it’s a gateway to understanding what lies beneath the surface of the human body. By harnessing the power of sound waves, these devices enable doctors to visualize internal structures with remarkable precision, paving the way for accurate diagnoses and effective treatments. As we move forward, we’ll explore the intricate mechanisms behind how these probes function and the diverse roles they play in modern medicine.
- How Does an Ultrasonic Probe Work?
After understanding the basic definition of an ultrasonic probe, let’s delve deeper into its working principle. The core technology behind ultrasonic probes relies on a phenomenon known as the piezoelectric effect, which is primarily achieved through piezoelectric materials. Piezoelectric materials are special substances that can convert mechanical energy (such as vibrations) into electrical energy, or vice versa. In ultrasonic probes, the most commonly used piezoelectric materials are piezoelectric crystals or ceramics.
When an ultrasonic probe begins to operate, it first receives electrical signals from the connected device. These electrical signals are transmitted to the piezoelectric material inside the probe, causing the material to vibrate at high frequencies. These vibrations generate ultrasonic waves—sound waves with frequencies higher than 20 kHz—which are then emitted into the body’s tissues. Since different types of tissues (such as muscles, fat, and bones) reflect and absorb sound waves differently, part of the sound waves will bounce back when they encounter tissue interfaces.
The reflected sound waves return to the piezoelectric material in the probe, where the process reverses: the mechanical vibrations are converted back into electrical signals. These electrical signals are then sent to the processing unit of the ultrasound machine, where complex calculations and image reconstruction algorithms transform them into visual images. These images can display real-time dynamic information about internal organs, blood vessels, fetuses, and other structures within the body.
It is worth noting that the efficiency and accuracy of an ultrasonic probe largely depend on the quality of the piezoelectric material and the design of the probe itself. For instance, some advanced probes use multi-layered piezoelectric materials or cutting-edge manufacturing processes to enhance the efficiency of sound wave emission and reception. Additionally, modern ultrasonic probes integrate various advanced technologies, such as phased array technology and micro-machining techniques, allowing the probe to control the direction and focus of sound waves more flexibly. This results in higher-resolution imaging and deeper penetration capabilities.
In summary, while the working principle of an ultrasonic probe may seem complex, its core mechanism is quite elegant. By leveraging the bidirectional conversion properties of piezoelectric materials, ultrasonic probes not only generate high-precision medical images but also play a crucial role in both diagnosis and treatment. As technology continues to advance, the functionality and performance of ultrasonic probes are expected to improve further, offering even more possibilities for the medical field.
- Types of Ultrasonic Probes
Ultrasonic probes come in a variety of types, each designed to meet specific needs based on frequency, shape, and application. Understanding these classifications is crucial for selecting the right probe for a particular medical procedure or diagnostic task.
Firstly, ultrasonic probes can be categorized by their operating frequency. High-frequency probes typically operate above 10 MHz and are used for examining superficial structures such as tendons, muscles, and skin. These probes offer excellent resolution but have limited penetration depth. On the other hand, low-frequency probes, which operate below 5 MHz, provide deeper penetration at the expense of lower resolution. They are ideal for imaging larger and deeper structures like the liver, kidneys, and heart.
In terms of shape, probes can be linear, convex, or phased array. Linear probes produce straight, rectangular images and are commonly used for scanning superficial structures such as blood vessels and soft tissues. Their high-resolution images make them perfect for detailed examinations where precision is required. Convex probes, with their curved design, offer a wider field of view and are suitable for larger areas like the abdomen or pelvis. The curvature allows for better contact with the body surface, enhancing image quality over a broader area.
Phased array probes represent a more advanced type of probe. They consist of multiple small elements that can be electronically controlled to steer and focus the ultrasound beam. This flexibility makes phased array probes highly versatile, particularly in cardiology where they are used for echocardiography. They can provide clear images of the heart from various angles without needing to physically move the probe much.
Lastly, specialized probes are designed for unique applications. For instance, endocavity probes are thin and long, allowing them to be inserted into body cavities for close-range imaging. Transvaginal and transrectal probes fall under this category, providing detailed images of reproductive organs. Intravascular probes are another specialized type, used during cardiac catheterization to visualize the inside of blood vessels.
Each type of ultrasonic probe serves a distinct purpose, tailored to the specific requirements of different medical procedures. By matching the right probe to the appropriate clinical scenario, healthcare professionals can ensure accurate diagnoses and effective treatments. As technology continues to advance, the range of available probes will likely expand, offering even more precise and specialized options for medical imaging and therapy.
- Applications of Ultrasonic Probes in Medicine
Ultrasonic probes have a wide array of applications in the medical field, ranging from diagnostic imaging to therapeutic treatments and surgical procedures. Their versatility makes them indispensable tools for healthcare professionals.
Diagnostic imaging is perhaps the most well-known application of ultrasonic probes. Obstetricians use ultrasound extensively during pregnancy to monitor fetal development, ensuring the health of both mother and child. Cardiologists employ echocardiography to assess heart function, detect abnormalities such as valve disorders or congenital defects, and evaluate the effectiveness of treatments. In radiology, ultrasound is used to examine internal organs like the liver, kidneys, and gallbladder, helping to diagnose conditions such as tumors, cysts, or stones. Musculoskeletal specialists utilize ultrasound to evaluate joints, tendons, and muscles, aiding in the diagnosis of injuries or degenerative diseases.
Beyond imaging, ultrasonic probes are also pivotal in therapeutic applications. One prominent example is lithotripsy, where high-intensity ultrasound waves are used to break down kidney stones into smaller fragments that can be more easily passed out of the body. Focused Ultrasound Surgery (FUS) represents another groundbreaking application, allowing for non-invasive destruction of tumors or other abnormal tissues without the need for incisions. This technique uses concentrated ultrasound beams to heat and destroy targeted cells while sparing surrounding healthy tissue.
In surgical contexts, ultrasonic probes play an increasingly important role. Surgeons often rely on intraoperative ultrasound to guide procedures with greater precision, especially in minimally invasive surgeries. For instance, during biopsies, ultrasound guidance ensures accurate placement of needles, reducing the risk of complications. Neurosurgeons may use ultrasound to navigate through brain tissue, identifying and avoiding critical structures during complex operations.
Moreover, ultrasonic probes are utilized in physical therapy for therapeutic purposes. Therapeutic ultrasound involves applying low-intensity sound waves to promote healing in soft tissues, reduce inflammation, and alleviate pain. This modality is commonly employed in rehabilitation settings to treat conditions such as tendonitis, muscle strains, and joint stiffness.
The applications of ultrasonic probes continue to expand as technology advances. Researchers are exploring new ways to enhance their capabilities, such as improving image resolution, increasing penetration depth, and integrating artificial intelligence for better interpretation of results. These innovations promise to further broaden the scope of what ultrasonic probes can achieve in medicine, ultimately leading to improved patient outcomes and more efficient healthcare delivery.
In summary, ultrasonic probes serve vital roles across numerous medical disciplines, from providing detailed images for accurate diagnoses to enabling precise therapies and surgeries. Their adaptability and effectiveness make them essential tools in modern healthcare, continually evolving to meet the needs of patients and practitioners alike.
- Advantages and Limitations of Using Ultrasonic Probes
Ultrasonic probes offer numerous advantages that have solidified their place as essential tools in modern medical practices. One of the most significant benefits is their non-invasive nature. Unlike procedures involving radiation, such as X-rays or CT scans, ultrasonic probes use sound waves, which pose no risk of harmful radiation exposure to patients. This makes ultrasound particularly suitable for repeated examinations, including routine monitoring during pregnancy.
Another key advantage is cost-effectiveness. Ultrasound machines and probes are generally more affordable compared to other imaging technologies like MRI or PET scanners. Additionally, they are portable and can be easily transported between different departments or even to remote locations, making them accessible in various healthcare settings, including clinics and rural areas with limited resources.
Real-time imaging is another major benefit of ultrasonic probes. Physicians can obtain immediate visual feedback, allowing for dynamic assessments of moving structures such as blood flow, heart contractions, and fetal movements. This capability enhances diagnostic accuracy and enables faster decision-making during critical situations.
Despite these advantages, ultrasonic probes also come with certain limitations. One notable drawback is their limited penetration depth, especially in obese patients or when imaging through dense tissues like bone or air-filled lungs. High-frequency probes, while providing excellent resolution, struggle to penetrate deeply into the body, whereas low-frequency probes sacrifice detail for greater depth, often resulting in less precise images.
Interpretation of ultrasound images also requires specialized training and experience. The quality of the images heavily depends on the skill level of the operator, meaning that inexperienced users may produce suboptimal results or misinterpret findings. Furthermore, ultrasound images can sometimes be subjective, leading to variability in diagnoses among different practitioners.
Environmental factors can also impact the performance of ultrasonic probes. For instance, excessive noise or improper patient positioning might interfere with the clarity of the images. Moreover, while ultrasound is highly effective for soft tissue imaging, it has limited utility in evaluating certain structures like the brain or lungs due to interference from bone or air.
In conclusion, ultrasonic probes bring a wealth of benefits to medical practices, including safety, affordability, portability, and real-time imaging capabilities. However, their limitations, such as restricted penetration depth, dependence on operator skill, and challenges in specific applications, must also be considered. By understanding both the strengths and weaknesses of ultrasonic probes, healthcare professionals can make informed decisions about their appropriate use, ensuring optimal patient care and outcomes.
- Maintenance and Care of Ultrasonic Probes
Proper maintenance and care of ultrasonic probes are crucial to ensure their longevity and optimal performance in medical settings. These delicate instruments require regular attention to prevent damage, maintain image quality, and comply with hygiene standards. Below are some essential tips and guidelines for maintaining and caring for ultrasonic probes.
First and foremost, cleanliness is paramount. Ultrasonic probes come into direct contact with patients, making them potential carriers of infectious agents if not properly sanitized. After each use, probes should be cleaned according to the manufacturer’s instructions, typically involving wiping them down with an approved disinfectant solution. It is important to avoid immersing the probe in liquids unless specifically designed for such procedures, as this could damage internal components. Additionally, always ensure that the probe is completely dry before storage to prevent mold or bacterial growth.
Cable management is another critical aspect of probe maintenance. The cables connecting the probe to the ultrasound machine are often subjected to stress from bending, twisting, or being pulled. To prolong their lifespan, avoid sharp bends or excessive tension on the cable. When not in use, store the probe with its cable neatly coiled rather than tangled or stretched out. Furthermore, regularly inspect the cable for signs of wear and tear, such as cracks or fraying, and replace it promptly if any issues are detected.
Storage conditions also play a significant role in preserving the integrity of ultrasonic probes. They should be stored in a clean, dry environment free from dust, moisture, and extreme temperatures. Many manufacturers provide protective cases or cradles specifically designed for probe storage, which help safeguard against accidental drops or impacts. If the probe includes a cover or sheath for specific applications, ensure these accessories are also cleaned and stored appropriately.
Calibration and routine testing are vital to maintaining the accuracy and reliability of ultrasonic probes. Periodically verify the probe’s functionality by performing quality assurance tests using phantom models or other standardized tools. This helps detect any deviations in performance early on and ensures consistent image quality. In case of any malfunctions or unexpected behavior, consult the user manual or contact the manufacturer’s technical support for troubleshooting guidance.
Lastly, education and training for staff members who handle ultrasonic probes cannot be overstated. All operators should receive thorough instruction on proper handling techniques, cleaning protocols, and general maintenance practices. Regular refresher courses can reinforce best practices and keep personnel updated on any new developments or recommendations from the manufacturer.
By adhering to these maintenance and care guidelines, healthcare facilities can maximize the lifespan of their ultrasonic probes while ensuring they continue to deliver high-quality diagnostic images. Proper upkeep not only minimizes the risk of equipment failure but also contributes to a safer and more efficient healthcare environment for both patients and providers alike.
- Future Developments in Ultrasonic Probe Technology
The field of ultrasonic probe technology is rapidly evolving, driven by ongoing research and innovation aimed at enhancing diagnostic accuracy, expanding applications, and improving patient care. Current advancements and future prospects promise to revolutionize the way ultrasound is utilized in medicine, making it an even more indispensable tool for healthcare professionals.
One of the most exciting areas of development involves the miniaturization of ultrasonic probes. Researchers are exploring the creation of smaller, more portable devices that can be easily integrated into wearable technology or handheld units. For instance, pocket-sized ultrasound machines paired with smartphone connectivity are already becoming available, allowing clinicians to perform quick assessments in various settings, including emergency rooms, ambulances, and remote locations. This trend towards compactness not only increases accessibility but also democratizes medical imaging, bringing advanced diagnostics to underserved populations worldwide.
Another promising area of research focuses on improving image quality through advancements in probe design and materials. Innovations such as matrix array transducers enable multi-dimensional imaging, providing richer data sets and more detailed visualizations of internal structures. Additionally, the use of advanced piezoelectric materials and microfabrication techniques enhances sensitivity and resolution while reducing noise interference. These improvements hold great potential for early detection of diseases and better differentiation between healthy and pathological tissues.
Artificial intelligence (AI) and machine learning are also playing increasingly important roles in ultrasonic probe technology. AI algorithms can analyze vast amounts of ultrasound data to assist in diagnosis, identify patterns that might be missed by human operators, and even predict disease progression. Such capabilities could significantly reduce diagnostic errors and improve treatment planning. Furthermore, AI-driven systems may help standardize image acquisition and interpretation, addressing variability among different practitioners and ensuring consistent results across diverse clinical environments.
Wireless connectivity represents another frontier in ultrasonic probe development. By eliminating the need for physical cables, wireless probes offer greater flexibility and convenience during examinations. They can transmit real-time data to remote monitoring stations or cloud-based platforms, facilitating telemedicine applications and enabling collaboration among healthcare providers regardless of geographical location. This advancement is particularly beneficial in situations where immediate expert consultation is required but unavailable locally.
Looking ahead, nanotechnology offers intriguing possibilities for further enhancing ultrasonic probe capabilities. Scientists are investigating the use of nanoparticles as contrast agents to improve visibility of specific tissues or cells during ultrasound imaging. This approach could lead to breakthroughs in detecting cancerous tumors, monitoring drug delivery, and evaluating therapeutic responses at the molecular level.
In conclusion, the future of ultrasonic probe technology holds immense promise, with numerous innovations on the horizon poised to transform medical imaging and patient care. From miniaturized devices and improved image quality to AI integration and wireless solutions, these advancements will continue to push the boundaries of what is possible with ultrasound. As research progresses and new technologies emerge, ultrasonic probes will undoubtedly remain at the forefront of modern medicine, offering unparalleled insights into the human body and contributing to better health outcomes for all.
- Conclusion
Ultrasonic probes have become indispensable tools in modern medicine, offering a versatile and non-invasive means of diagnosing, treating, and monitoring various medical conditions. Throughout this discussion, we have explored the fundamental aspects of ultrasonic probes, from their basic principles and types to their wide-ranging applications and future developments. Summarizing the key points, it is clear that these devices play a pivotal role in advancing healthcare practices.
Firstly, ultrasonic probes rely on the piezoelectric effect to generate and receive high-frequency sound waves, enabling real-time imaging of internal structures without exposing patients to harmful radiation. Their ability to provide detailed visualizations of organs, tissues, and blood flow has made them essential in fields such as obstetrics, cardiology, radiology, and musculoskeletal medicine. Moreover, their adaptability allows for specialized applications, including therapeutic treatments like lithotripsy and focused ultrasound surgery, as well as guidance during minimally invasive procedures.
Despite their many advantages, ultrasonic probes also present certain limitations, such as restricted penetration depth, operator dependency, and challenges in imaging through dense or air-filled tissues. However, proper maintenance, regular calibration, and ongoing training for healthcare professionals can mitigate these drawbacks and ensure optimal performance.
Looking toward the future, advancements in miniaturization, artificial intelligence, wireless connectivity, and nanotechnology promise to further enhance the capabilities of ultrasonic probes. These innovations will not only improve diagnostic accuracy and treatment efficacy but also increase accessibility, particularly in underserved regions. As technology continues to evolve, ultrasonic probes will undoubtedly remain at the forefront of medical imaging and therapy.
In conclusion, the significance of ultrasonic probes in modern medicine cannot be overstated. They represent a harmonious blend of science, engineering, and clinical expertise, providing safe, cost-effective, and reliable solutions for countless medical challenges. By continuing to invest in research and development, we can unlock even greater potential for these remarkable devices, ensuring they continue to shape the future of healthcare for generations to come.
- FAQs About Ultrasonic Probes
To further clarify the role and functionality of ultrasonic probes, here are some common questions and answers that address potential queries from readers:
Q: What is an ultrasonic probe used for?
A: An ultrasonic probe is primarily used for diagnostic imaging in medicine. It generates high-frequency sound waves to create real-time images of internal structures such as organs, muscles, and blood vessels. Additionally, it plays a crucial role in therapeutic applications like breaking down kidney stones (lithotripsy) and guiding surgical procedures.
Q: Are ultrasonic probes safe to use?
A: Yes, ultrasonic probes are considered safe because they do not involve ionizing radiation, unlike X-rays or CT scans. This makes them ideal for repeated use, including routine prenatal check-ups during pregnancy.
Q: How deep can ultrasonic probes penetrate?
A: The penetration depth depends on the frequency of the probe. Low-frequency probes (below 5 MHz) can penetrate deeper into the body but offer lower resolution, while high-frequency probes (above 10 MHz) provide better resolution but have limited penetration depth.
Q: Can ultrasonic probes be used for all types of tissues?
A: While ultrasonic probes excel at imaging soft tissues, they face limitations when dealing with dense materials like bone or air-filled cavities such as lungs. These structures tend to reflect or absorb sound waves, making imaging challenging.
Q: Do ultrasonic probes require special training to operate?
A: Yes, proper operation of ultrasonic probes requires specialized training. The quality of the images heavily relies on the skill and experience of the operator, so healthcare professionals must undergo thorough instruction to ensure accurate diagnoses.
Q: How often should ultrasonic probes be maintained?
A: Regular maintenance is essential to prolong the lifespan of ultrasonic probes. After each use, probes should be cleaned according to manufacturer guidelines. Periodic inspections and calibrations are also necessary to ensure optimal performance and reliability.
Q: Can ultrasonic probes connect wirelessly?
A: Advances in technology have led to the development of wireless ultrasonic probes, which eliminate the need for physical cables. These devices transmit data via Bluetooth or other wireless protocols, offering greater flexibility and convenience during examinations.
Q: What are the future trends in ultrasonic probe technology?
A: Future trends include miniaturization, integration of artificial intelligence for enhanced image analysis, improved resolution through advanced materials, and expanded applications in telemedicine and nanotechnology-based contrast agents.
Q: Are ultrasonic probes expensive?
A: Compared to other imaging modalities like MRI or PET scans, ultrasonic probes are relatively affordable. However, costs vary depending on factors such as probe type, frequency range, and additional features.
By addressing these frequently asked questions, we hope to provide clarity and reassurance regarding the use of ultrasonic probes in medical practice. Understanding their capabilities and limitations empowers both healthcare providers and patients to make informed decisions about their care.
